Rt3070 IPEX Socket low power wireless wifi module ralinked with bluetooth for

    Buy cheap Rt3070 IPEX Socket low power wireless wifi module ralinked with bluetooth for from wholesalers

    Buy cheap Rt3070 IPEX Socket low power wireless wifi module ralinked with bluetooth for from wholesalers
    • Buy cheap Rt3070 IPEX Socket low power wireless wifi module ralinked with bluetooth for from wholesalers

    Rt3070 IPEX Socket low power wireless wifi module ralinked with bluetooth for

    Ask Lasest Price
    Brand Name : OEM
    Certification : CE/FCC
    Price : CONTACT SUPPLIER
    Delivery Time : 5DAYS
    Payment Terms : T/T,D/P,Western Union
    Supply Ability : 200000pcs per Month
    • Product Details
    • Company Profile

    Rt3070 IPEX Socket low power wireless wifi module ralinked with bluetooth for

    Rt3070 IPEX Socket low power wireless wifi module ralinked with bluetooth for WinXP

    1. 1T1R Mode

    2. 802.11N 150Mbps wireless USB adaptor
    3. Ralink RT3070 chipset
    4. High peak rate WiFi adapter
    5. Software AP function.

    150Mbps WiFi Module
    USB WiFi Dongle
    802.11 n WiFi USB module
    Wireless network card
    6-pin 2.0mm male pitch jumper

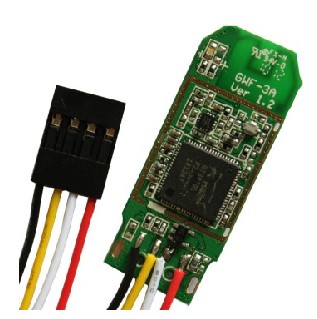

    Model: GWF-3M02

    Ralink RT3070(DC/DC) MAC/BBP

    Main Features:

    802.11b: 1, 2, 5.5, 11Mbps; 802.11g: 6, 9, 12, 24, 36, 48, 54Mbps

    Peak rate 54Mbps, Peak throughput 27Mbps

    Power management

    Certification

    Wi-Fi Certification: 802.11 b/g, WPA, WPA2, WMM, WMM-PS

    WHQL, Cisco CCX, USB-IF



    Hardware

    Chipset: Ralink RT3070

    Host interface: USB2.0 (4-pin 2.0mm male pitch jumper)

    LEDs; Link/Acticity



    RF

    Antenna: External antenna visa IPEX Socket

    Frequency: 2412~2483.5 MHz, ISM band

    Transmit Power: 802.11b: 17+/-1.5dBm; 802.11g: 14+/-1.5dBm;

    Receive Sensitivity: 802.11b: -84dBm@11Mbps; 802.11g: -68dBm@54Mbps



    Software

    Operation System: Windows CE/2000/XP/Vista; Linux; Mac OS X

    Security: WEP 64/128, WPA, WPA2, 802.1x, Cisco CCS V1.0, 2.0 and V3.0 Compliant



    Operation Conditions

    Voltage Range: DC 5.0V ± 5%

    Operating Temperature: 0° C - 50° C

    Storage Temperature: -20° C - 70° C

    Operating Humility: RH 95% (Non-Condensing)

    Storage Humidity: RH 95% (Non-Condensing)

    Quality Rt3070 IPEX Socket low power wireless wifi module ralinked with bluetooth for for sale
