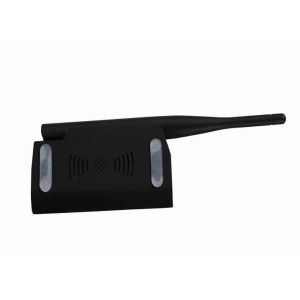

    500MW WiFi Signal coverage 5dBi SMA high power usb wireless adapter 2.0 GWF-PA02

    Ask Lasest Price
    Brand Name : OEM
    Certification : CE/FCC
    Price : CONTACT SUPPLIER
    Delivery Time : 5DAYS
    Payment Terms : T/T,D/P,Western Union
    Supply Ability : 200000pcs per Month
    • Product Details
    • Company Profile

    500MW WiFi Signal coverage 5dBi SMA high power usb wireless adapter 2.0 GWF-PA02


    500MW WiFi Signal coverage 5dBi SMA high power usb wireless adapter 2.0 GWF-PA02

    1. Max Power up to 1000MW

    2. Provide about 1000 meters WiFi Signal coverage( in open area).
    3. External 5dBi foldable antenna

    High Power WiFi USB Adapter 802.11 b/g/n 1T1R Mode ( 500MW 150Mbps Ralink RT3070)

    Max Power up to 500MW on 802.11 g, provide about 1000 meters WiFi Signal coverage( in open area)

    Support USB 2.0/1.1 Interface, Mini USB port + 1.2 meter type A externded cable

    With 5dBi ( or 7dBi or 9dBI) detachable SMA external antenna.

    High speed and longer extended distance for embedded devices and high end game machines.

    Software AP function, drivers supporting Windows 7/XP/Vista/CE, Linux 2.6X, Mac OS.

    High Security: WEP 64/128 bit, WPA, WPA2

    LED Show: Link or activity



    Main Features:

    L 802.11b: 1, 2, 5.5, 11Mbps; 802.11g: 6, 9, 12, 24, 36, 48, 54Mbps

    L 802.11n: (20MHz) MCS0-7, Support up to 72Mbps

    (40MHz) MCS0-7, Support up to 150Mbps

    L OFDM, Peak rate 150Mbps, Peak throughput 90Mbps.

    L Power Management

    Certification

    L Wi-Fi Certification: 802.11 b/g/n, WPA, WPA2, WMM, WMM-PS

    L WHQL, Cisco CCX

    Hardware

    Chipset
    Ralink RT3070, 1T1R mode

    Host interface
    USB2.0/1.1, type A ( 4 pin header)

    LEDs
    Link/ Activity

    RF

    Antenna
    External 5dBi /7dBi/ 9dBi SMA Connector antenna.

    Frequency
    2412~2483.5 MHz, ISM band.

    Transmit Power
    802.11b: 18+/-1.5dBm; 802.11g: 15+/-1.5dBm;


    802.11n: (HT20), 14+/-1.5dBm, 802.11n: (HT40), 14+/-1.5dBm,

    Receive Sensitivity
    802.11b: -84dBm@11Mbps; 802.11g: -68dBm@54Mbps


    802.11n: (HT20), -67dBm@MSC7, 802.11n: (HT40), -63dBm@MSC7,

    Software

    Operation System
    Windows CE/2000/XP/Vista/7; Linux 2.6. X; Mac OS X

    Security
    WEP 64/128bit, WPA, WPA2, 802.1x, and 802.11I

    Cisco CCS V1.0, 2.0 and V3.0 Compliant

    Operation Conditions

    Voltage/Current Range*
    DC 5.0V ± 5% / <110mA

    Operating Temperature
    0° C - 50° C

    Storage Temperature
    -20° C - 70° C

    Operating Humidity
    RH 95% (Non-Condensing)

    Storage Humidity
    RH 95% (Non-Condensing)

    Quality 500MW WiFi Signal coverage 5dBi SMA high power usb wireless adapter 2.0 GWF-PA02 for sale
